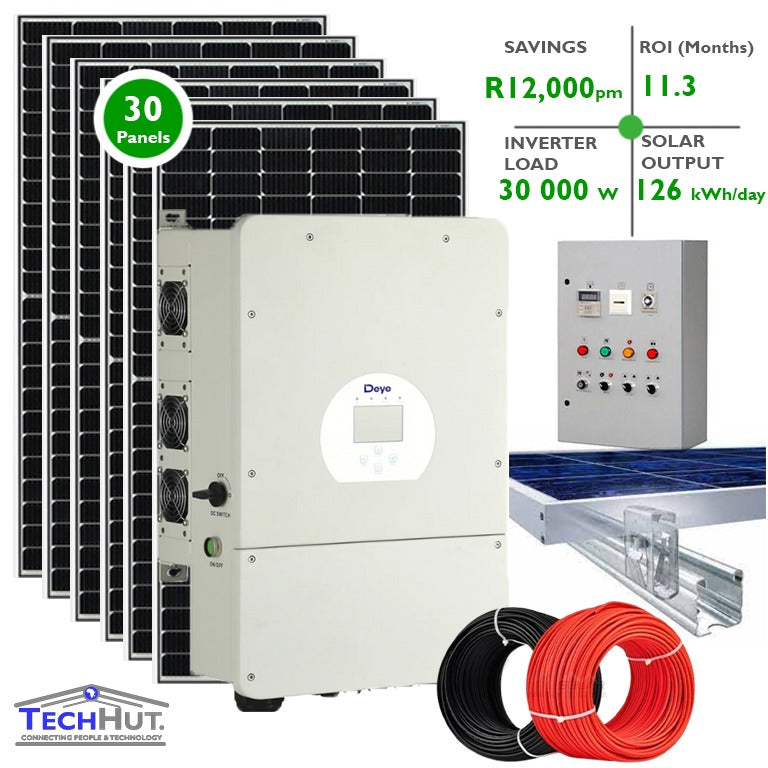

Kit Includes:
-
- 1 x Deye 30KW Inverter 3P Hybrid PV 48V with WiFi Dongle IP65
- 30 x Jinko Solar 555W Half Cell Solar Panels
- 1 x Pre-Assembled Distribution Board For Solar Power PV Inverter
-
15 x 3m Aluminium Mounting Structures ( Tiled - IBR)
- 1 x 6mm Solar Cable 50m
1 x Control Box
- 1 x Deye 30KW Inverter 3P Hybrid PV 48V with WiFi Dongle IP65
Inverter Description:
The advanced Deye 30kW Three Phase Hybrid Inverter is a cutting-edge solar inverter designed for optimal performance and reliability in photovoltaic (PV) systems. This inverter model boasts advanced features to efficiently manage solar energy conversion and integration with grid systems, ensuring seamless power supply.
- Battery Type: Lithium-ion
- Battery Voltage Range (V): 160-800
- Max. Charging Current (A): 50+50
- Max. Discharging Current (A): 50+50
- Charging Strategy for Li-ion Battery: Self-adaption to BMS
- Number of Battery Input: 2
- Max. PV Input Power (W): 39000
- Max. PV Input Voltage (V): 1000
- Start-up Voltage (V): 180
- MPPT Voltage Range (V): 150-850
- Rated PV Input Voltage (V): 600
- Max. Operating PV Input Current (A):36+36+36
- Max. Input Short-Circuit Current (A): 55+55+55
- Rated AC Input/Output Active Power (W): 30000
- Max. AC Input/Output Apparent Power (VA): 33000
- Rated AC Input/Output Current (A): 45.5/43.5
- Max. Three-phase Unbalanced Output Current (A): 60
- No. of MPP Trackers/ No. of Strings per MPP Tracker: 3/2+2+2
- Max. Efficiency: 97.60%
- Euro Efficiency: 97.00%
- MPPT Efficiency: >99%
- Surge Protection Level: TYPE II(DC), TYPE II(AC)
- Noise (dB): ≤65
- Ingress Protection(IP) Rating: IP65
- Weight (kg): 80
- Warranty: 5 Years/10 Years (Depends on the Final Installation Site of Inverter, Refer to Warranty Policy)
- Type of Cooling: Intelligent Air Cooling
- Integrated Protection: DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch Overvoltage Load Drop Protection, Residual Current (RCD) Detection, Surge protection level
Solar Panels Description:
Harness the limitless power of the sun with Jinko Solar's 555W Half Cell Solar Panels. Engineered with cutting-edge monocrystalline silicon cells, these panels offer superior energy conversion efficiency and durability.
- Compact design with a robust aluminium frame for easy integration and weather resistance.
- Built-in micro-inverter technology ensures stable performance even in low-light conditions.
- Backed by a 12-year product warranty and certified to meet industry standards for reliability and longevity.
Download Solar Panel Datasheet
Control Box
