Product Description:

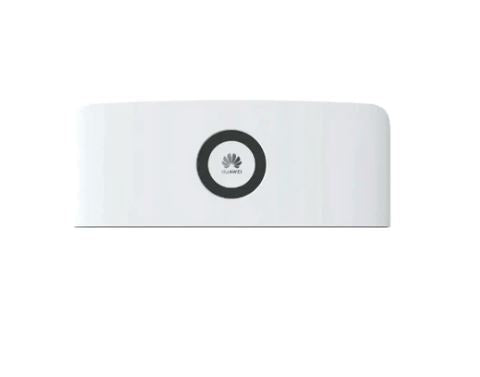

Huawei 5KW Isitepower-M ESS Power Module / Inverter
Gross weight 17KG
Product width in 70cm
Product depth in 15cm
Product height in 170cm
Brand name
Huawei
AC Output Rated Power Output: 6 kVA / 5 kW
Output Voltage: 230 VAC/50Hz
Max. Output Current: 25.8A
Max. Bypass Input Power: 6kW
AC Input Voltage: 230VAC/50Hz
Surge Protection: 3 kVA/5 kVA,
Max. Input Current: 30 A
PV Input Start-up Voltage: 100VDC MPPT
Voltage: 90–420VDC
Max. Input Voltage (Voc): 435VDC
Max. Input Current (Isc): 2 x 15 A
Recommended PV Power: 5000 Wp
No. PV Strings/MPPT Routes: 2/1
Optimizer Compatibility: DC Mbus Compatible
DC Surge Protection: 10 kA,
Max. Input Current per Strings: 15 A
General Communication: Wi-Fi
Display: LED's, NetEco Component part only - Requires other components: Huawei 5KWh Isitepower-M ESS Battery Module Huawei Isitepower-M Mounting Base
