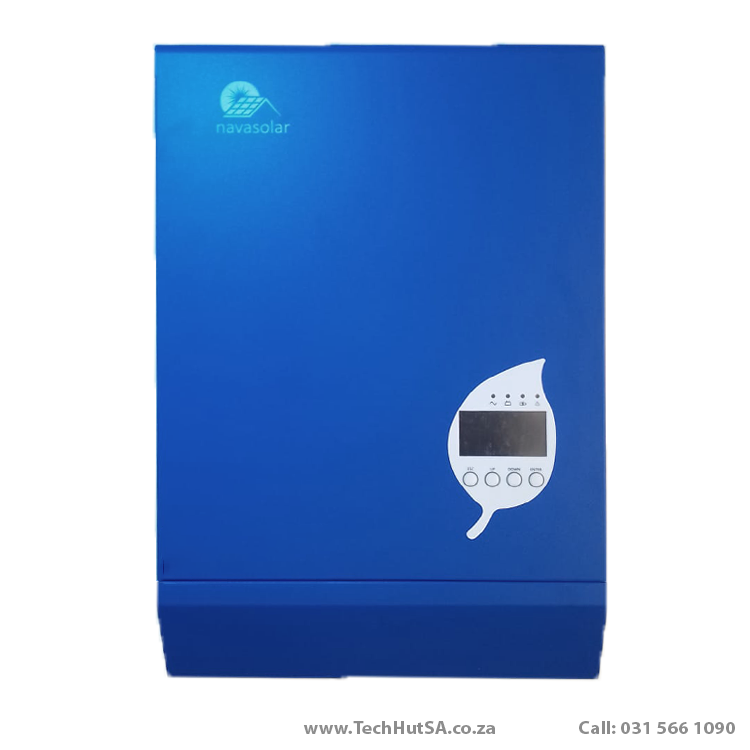

Unlock Reliable Power with the NV-X5048 Solar Inverter
Harness the sun's energy efficiently with the NV-X5048 Pure Sine Wave Solar Inverter, engineered for seamless integration into your home or office. This advanced inverter supports a robust power output of 5000W, ensuring consistent performance whether connected to AC mains or a generator.
Product Specifications
| Feature | Details |
|---|---|
| Model | NV-X5048 |
| Rated Power | 5000W / 5000KVA |
Key Features and Benefits
- Pure Sine Wave Output: Ensures clean, stable power for sensitive electronics.
- Battery Independent Design: Operates efficiently at 5kW without reliance on batteries.
- Smart Solar Charger (PWM/MPPT): Maximizes solar efficiency with advanced charge control.
- Auto Restart Function: Automatically resumes operation during AC recovery.
- Configurable AC/Solar Priority: Customizable settings via LCD for optimal energy management.
- Wide Input Voltage Range: Suitable for various home appliances and computers.
Detailed Specifications
Input:
- Voltage: 208/220/230/240VAC
- Selectable Voltage Range: 170-280 VAC (For Personal Computers) | 90-280 VAC (For Home Appliances)
- Frequency Range: 50 Hz/60 Hz (Auto sensing)
Output:
- AC Voltage Regulation (Batt. Mode): 230VAC ± 5%
- Surge Power: 10000W
- Efficiency (Peak): 94%
- Transfer Time: 10 ms
- Waveform: Pure sine wave
Battery and AC Charger:
- Battery Voltage: 48VDC
- Floating Charge Voltage: 54.8VDC
- Overcharge Protection: 60VDC
Solar Charger:
- Maximum PV Array Power: 5500W
- MPPT Range @ Operating Voltage: 120~430VDC
- Maximum PV Array Open Circuit Voltage: 450VDC
- Maximum Solar Charge Current: 80A
- Maximum AC Charge Current: 80A
- Maximum Charge Current: 80A
Operating Environment:
- Humidity: 5% to 95% Relative Humidity (Non-condensing)
- Operating Temperature: 0°C - 40°C
- Storage Temperature: -15°C - 60°C
Why Choose the NV-X5048 Solar Inverter?
This versatile inverter not only ensures reliable power supply but also supports sustainable energy practices with its advanced solar charging capabilities. Perfect for homes and businesses looking to reduce energy costs and environmental impact.
Discover the power of solar with the NV-X5048 Solar Inverter today!
