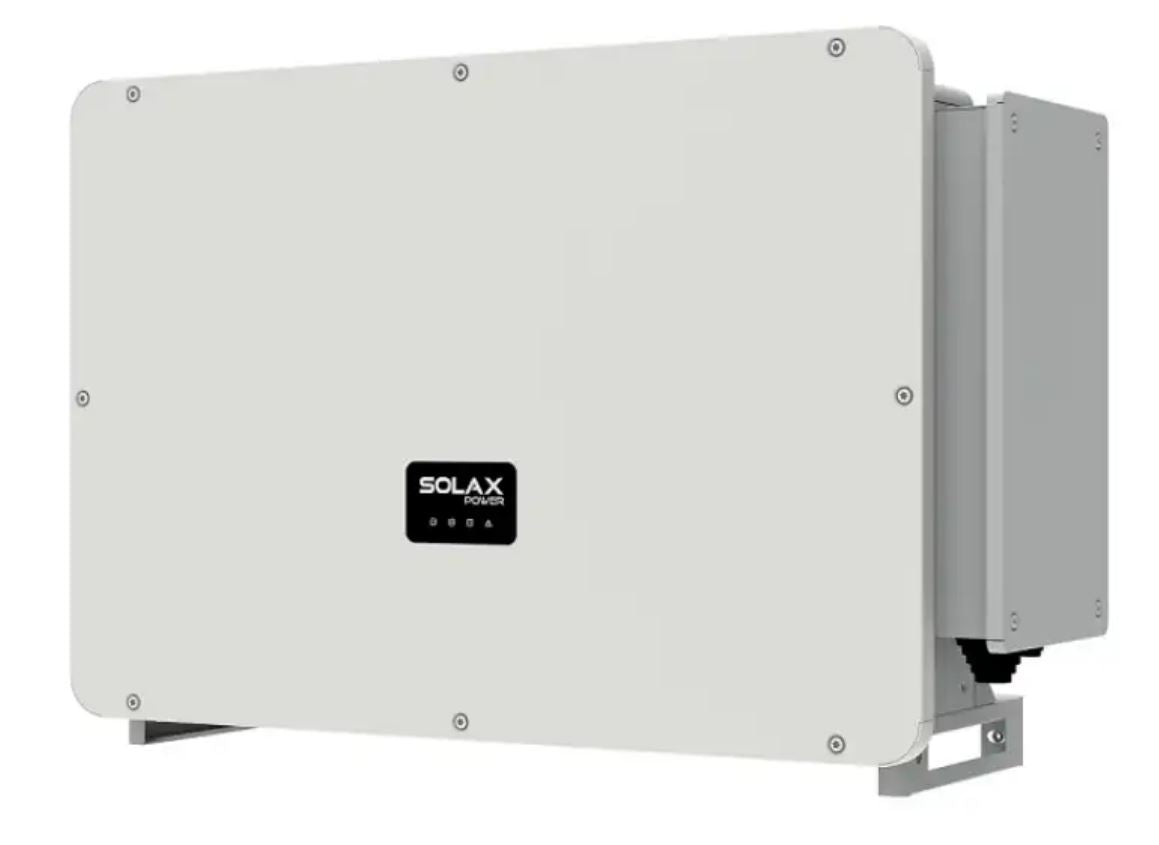

SolaX 125kW Three-Phase Grid-Tie Inverter – Powerful, Reliable Solar Energy Solutions for Large-Scale Installations
Maximize your energy potential with the SolaX 125kW Three-Phase Grid-Tie Inverter—designed for commercial and rooftop solar panel systems for homes and businesses. This high-performance inverter is engineered for maximum energy harvesting, efficiency, and long-lasting reliability, making it the perfect choice for anyone looking to optimize their solar power systems.
Harvest More Energy From the Sun with SolaX X3-Forth
The SolaX X3-Forth is built to deliver exceptional energy performance for both solar power systems and large solar installation projects. With 12 MPPTs (Maximum Power Point Trackers) and 150% oversized PV power input, this inverter ensures that you can extract more energy from your solar panels. Whether you are working with photoelectric panels, solar solar panels, or solar pv panels, the X3-Forth helps to optimize the performance of your solar system for home or commercial setup.
- Maximum PV Array Input Power: 188kWp
- Maximum PV Input Voltage: 1100VDC
- MPP Tracker Voltage Range: 180VDC – 1000VDC
- Input Current Per MPPT: 32A
With maximum efficiency of 98.6% and a high MPPT efficiency of 99.9%, the SolaX X3-Forth inverter ensures that you get the best return on your solar panels for home price and solar power system price.
Smart, Safe, and Reliable Solar Energy Solution
The SolaX X3-Forth is equipped with advanced safety features and innovative technologies to enhance system reliability and minimize risks. It includes I-V curve scanning, AFCI protection, and surge protection, providing enhanced security for your solar power systems. Its 24-hour operation monitoring helps detect faults early, ensuring that your system remains optimized even at night.
- Overvoltage and Undervoltage Protection
- Grid Monitoring and DC Injection Monitoring
- Anti-Islanding Protection
- Arc-Fault Circuit Interrupter (AFCI) Optional
This inverter also uses an aluminum shovel tooth radiator to dissipate heat quickly, reducing maintenance costs and increasing the lifespan of your system.
Designed for Harsh Environments
Built to withstand extreme weather conditions, the SolaX X3-Forth features an IP66 rating, ensuring that it remains protected against dust, water, and other harsh elements. Whether you're installing in solar south africa, or facing extreme temperatures, the SolaX X3-Forth can handle it.
- Operating Temperature Range: -30°C to +60°C
- Maximum Operating Altitude: 4000m (derates above 3000m)
- Relative Humidity: 0% to 100%
This makes it ideal for solar panels installation in areas with high environmental stress or those located in rural or remote regions.
Key Features of the SolaX X3-Forth 125kW Three-Phase Inverter
| Feature | Specification |
|---|---|
| Max. PV Array Input Power | 188kWp |
| Max. PV Input Voltage | 1100VDC |
| Nominal Input Voltage | 580VDC / 600VDC |
| MPP Tracker Voltage Range | 180VDC – 1000VDC |
| Strings per MPP Tracker | 2 |
| Max. PV Input Current per MPPT | 32A |
| Max. Short Circuit Current per MPPT | 46A |
| Rated AC Output Power | 125kW |
| Max. AC Output Apparent Power | 132kVA |
| Nominal AC Output Current | 189.4A / 181.2A |
| Nominal AC Voltage | 220/380, 230/400, 3/N/PE, 3/PE |
| THDi (Rated Power) | <3% |
| Max Efficiency | 98.6% |
| MPPT Efficiency | 99.9% |
| Ingress Protection | IP66 |
| Cooling System | Smart Fan Cooling |
| Communication Interfaces | RS485 / USB / DRM / PLC (Optional) |
| Weight | 87kg |
| Dimensions (W × H × D) | 985 × 660 × 327.5mm |
Solar Power System and Flexible Installation
SolaX X3-Forth can easily integrate with your existing solar energy system for home or commercial power setup. With its 150% oversized PV input, you can achieve greater solar energy efficiency, whether you're running a solar system with price constraints or aiming for a higher energy output. It’s compatible with the SolaX Datahub 1000, enabling flexible solar power installation setups. You can build a system up to 1.36MW with 9 parallel units of X3-Forth 150kW.
- Maximized Solar Energy Harvesting: With 150% oversized PV power input, you can increase your energy yield by ensuring your system works at peak efficiency.
- Flexible System Design: Customize your power station by connecting multiple solar panels for home, ensuring that you can meet both solar energy system for home and business power needs.
Why Choose SolaX X3-Forth for Your Solar Power System?
- Highly Efficient: With up to 99.9% MPPT efficiency, SolaX ensures your solar power system operates at its peak, getting the most energy out of your solar pv panels.
- Robust and Safe: Equipped with AFCI protection, surge protection, and DC isolation protection, SolaX X3-Forth ensures your solar installation is safe and reliable for years to come.
- Ideal for Harsh Climates: With an IP66 rating and wide temperature tolerance, the inverter is perfect for installing solar panels in South Africa or other regions with extreme weather conditions.
- Cost-Effective Energy: Whether you're looking for solar power for your home or a solar energy system for your business, the price of solar panels and the solar power system price are made more affordable by maximizing energy production and reducing operational costs.
