Deye Sun 16kW Solar Hybrid Inverter (Off-Grid / Hybrid / Parity etc)
Deye Sun 16kW is the most powerful low-voltage inverter in the world, achieving a maxium output power of 16kW and battery charge current of 275A.
The Deye Hybrid Parity Inverter is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power coming from multiple sources such as solar, mains grid and generator and then effectively storing and releasing electric power as the utilities require.
Deye inverters show off advanced technology, strong build quality, and high efficiency . They come with complete protection features, a user-friendly design, as well as used in numerous applications. Deye inverters offer multiple options, can be connected in parallel, and are easy to install. Additionally, they operate soundlessly, making them suitable for residential use. Overall, Deye Hybrid Inverters are an excellent and effective choice for residential solar power systems. Best of all, they are Town/City and Municipal Approved Inverters!
Deye Inverters have multiple applications and it is recommended to view the video to have a much better idea of the application possibilities.

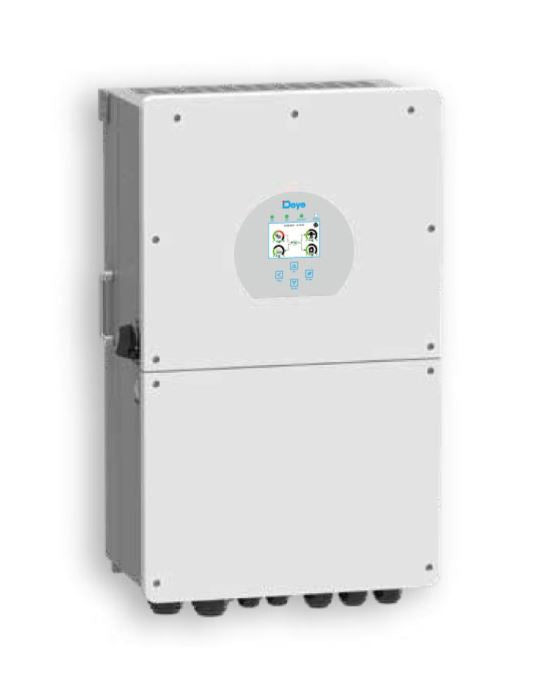

- Deye 16kW Hybrid Inverter (1 Phase) – SUN-16K-SG01LP1-EU
- Model SUN-16K-SG01LP1-EU
- Equipped with colourful touch LCD.
- Wi-Fi Ready – works via Solarman App.
- Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
- DC Couple & AC Couple – retrofit existing solar system.
- Maximum 16pcs parallel for on-grid & off-grid operation – multiple battery parallel supported.
- 6 Time periods for battery charge/discharge.
- Storing energy from diesel generator supported.
- Grid Type: Single Phase
- Protection Degree: IP65
- Noise Level: <30dB
- Maximum Charge/Discharge Current: 290A
- Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
- Maximum DC Input Power: 20800W
- Maximum DC Input Voltage: 500V
- MPPT Range: 150-425V
- 3 x MPPT
- Start-up Voltage: 125V
- AC Output & UPS Power: 16000W
- Backup Power: 14000W
- Backup Rated Current: 60.9A
- Backup UPS: 6ms Auto switchover time.
- Maximum Efficiency: 97.60%
- Euro Efficiency: 96.50%
- MPPT Efficiency: 99.90%
- Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
- Battery Voltage Range: 40-60V
- Communication with BMS: CAN/RS485
- Smart Cooling
- Operation Temperature: -45°C to 60°C, >45°C Derating
- Installation Type: Wall Mounted.
- Weight: 48.5Kg
- Dimensions (W x H x D): 464 x 798.4 x 300 mm
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
- 5 Year Product Warranty (Extended to 10 Years if paired with Dyness/Volta Battery).
- Free Delivery Nationwide – South Africa
- Recommended Solar Panel Configuration:
- Min 3 Panels – Max 24 Panels (Refer to breakdown below for Panel set up per MPPT)
- First MPPT: Min 3 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on first MPPT)
- Second MPPT: Min 3 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on second MPPT)
- Third MPPT: Min 3 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on third MPPT)
- Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
